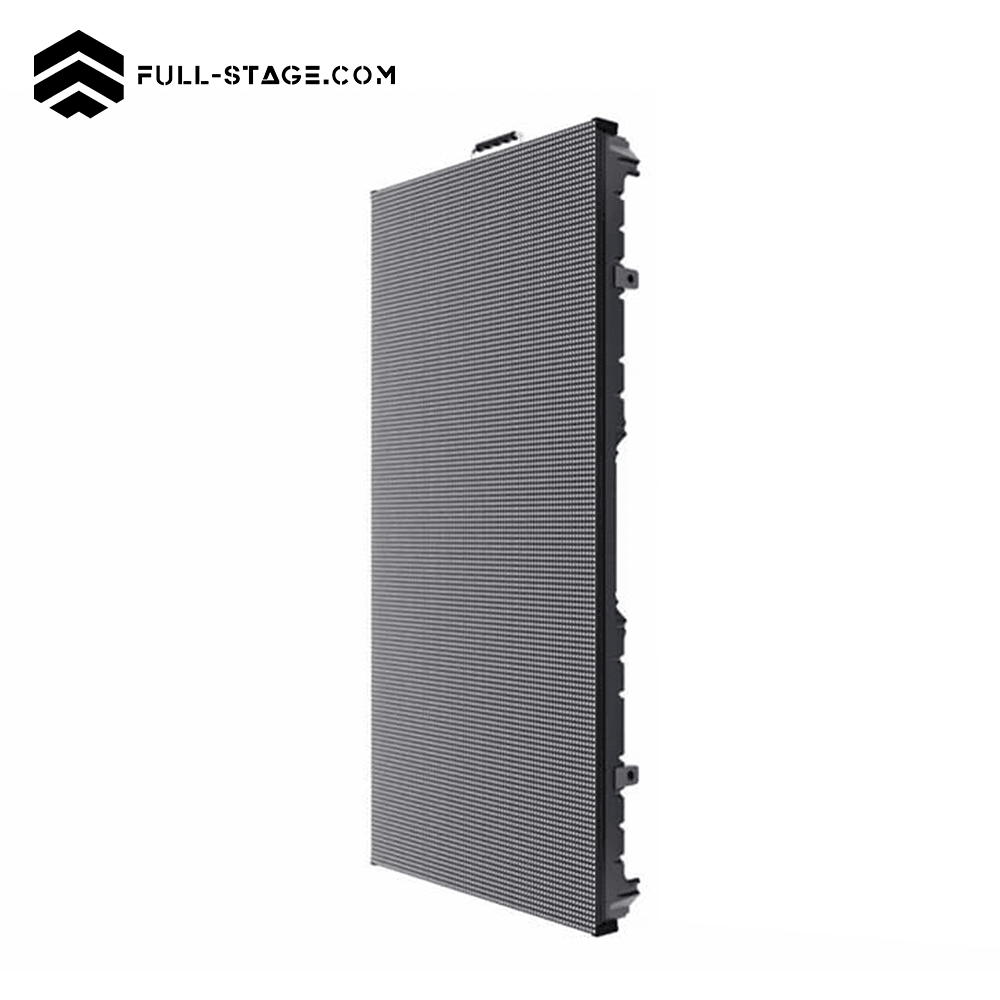

Led Screen P3.91 Outdoor 500*1000mm
Advantages of the Full-Stage P3.91 Outdoor Led Screen:
- Highly resistant: Our Led Screens are designed and built from the best materials, providing all our customers with a high satisfaction rate with respect to our Led Screens.
- Long Life Time: Our Led screens have a livetime of 100,000 Hours of use. The useful life of our screens is so long that they could become obsolete before they stop working.
-
IP Protection: It has IP65 protection (waterproof)
Note: We have received comments from customers who have purchased this product where for climatic reasons (Rain) they have tested the IP65 protection and the LED screens have worked perfectly.
Technical Characteristics of the Full-Stage P3.91 Outdoor Led Screen:
Led parameters:
Item | LED Type |
Viewing angle (H/V) | Wavelength | |
Red Led |
SMD 3 in 1 | 140º/65º | 625nm±2.5 | |
Green LED |
SMD 3 in 1 | 140º/65º | 525nm±2.5 | |
Blue led |
SMD 3 in 1 | 140º/65º | 470nm±2.5 |
Module Specifications:
Pixel Pitch | 3.91mm | |
Pixel Configuration | 1R1G1B | |
Module Resolution | 64 x 64 pixels | |
Module Pixels | 4096 pixels | |
Module Size | 250mm X 250mm |

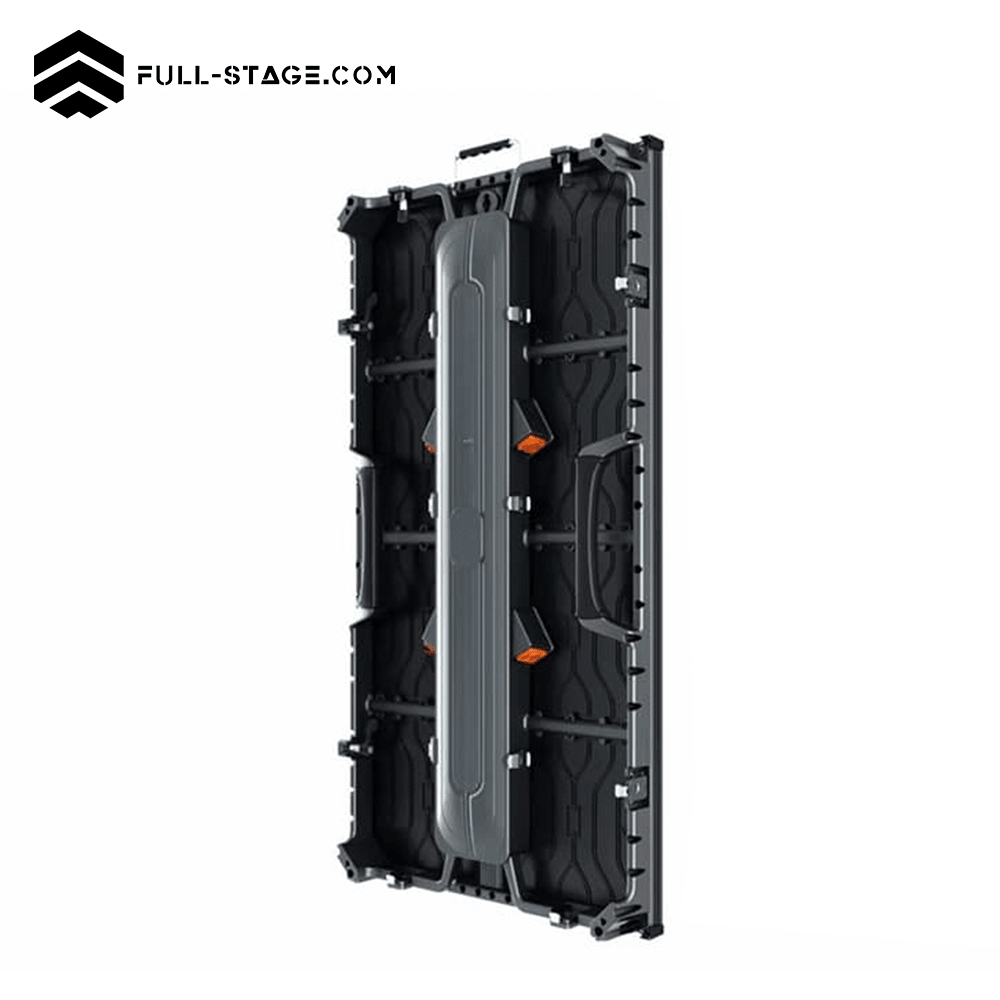

Cabinet Specifications:
Cabinet Measurements(mm)(WXHXD) | 500mm x 1,000mm x 90mm | |
Cabinet Resolution (dot) | 128 x 256 pixels | |
Number of Modules (pcs) | 8pcs | |
Pixels per Cabinet |
32,768 pixels | |
Pixel Density |
65,536 pixels/m 2 | |
Material | Aluminum die casting |
Parameters of the P3.91 Outdoor Led Screen:
Brightness of the screen | ≥4500cd/㎡ | |
Screen Weight |
15 kg/cabinet | |
Driving Method |
1/16 scan | |
H/V Visual Angle | 140°/65° | |
Better Viewing Distance |
4m - 80m | |
Maximum power consumption | 650W/㎡ | |
Average energy consumption | 250W/㎡ | |
Gray Level |
64K levels | |
Screen Color | 16M | |
Frame Rate | ≥60Hz | |
Update frequency | ≥1920Hz | |
Uninterrupted working hours | ≥72 hours | |
Screen Lifespan | ≥100,000 hours | |
MTBF | ≥5,000 hours | |
Discrete blind spot rate | <1/10000 | |
Continuous blind spot rate | None | |
Blind spot rate | <1/10000 | |
IP Protection Scale |
IP65 | |
screen plain | <±1mm | |
Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | |
Ambient Temperature and Humidity | Temperature:-40℃~+60℃ Humidity:10%~90%RH |
|
Control system | Full color, Linsn | |
Control Mode |
Connect to computer,synchronous control | |
Control system |
Windows98/2000/NT/XP/Vista |
Take advantage of this MEGA OFFER and Get your P3.91 Outdoor Led Screen on SALE!
We deliver in 🇻🇪Venezuela🇻🇪 nationwide ✅
Led Screen P3.91 Outdoor 500*1000mm
Sale price$505.94 USD
Regular price$799.99 USD (/)
